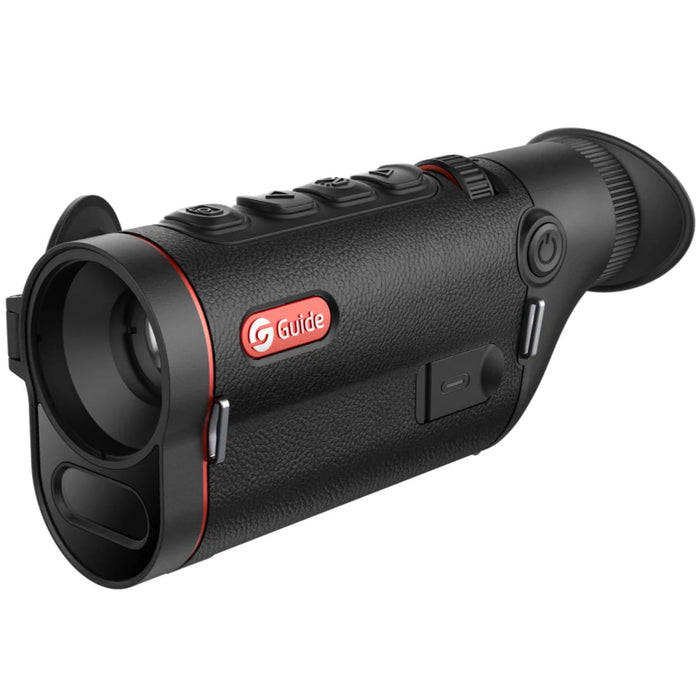

Guide TD633 LRF 2X 640x512 @ 12μm 35mm Thermal Monocular with Laser Rangefinder - Model # TD633L
The TD Gen 3 Series Handheld Thermal Imaging Monocular is our latest compact night vision device. Equipped with a 640 x512 infrared detector and a 35mm lens, it delivers a powerful detection range of up to 1950 yard and a laser rangefinder at 1090 yard.
Perfect for all users, its ambidextrous design is ergonomic and enable one-handed operation. Up to 10 hours of runtime with a single 18650 battery, you can trust its performance for a night long hunt.

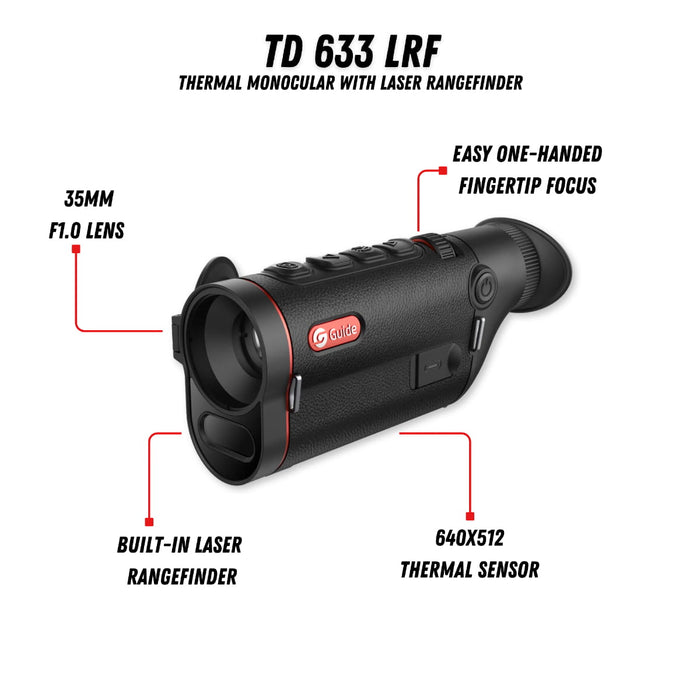

Features:
-
640×512@12μm, 20mK Detector
-
One-handed Easy fingertip focus
-
1090yd Laser Rangefinder
-
10 Hour Battery

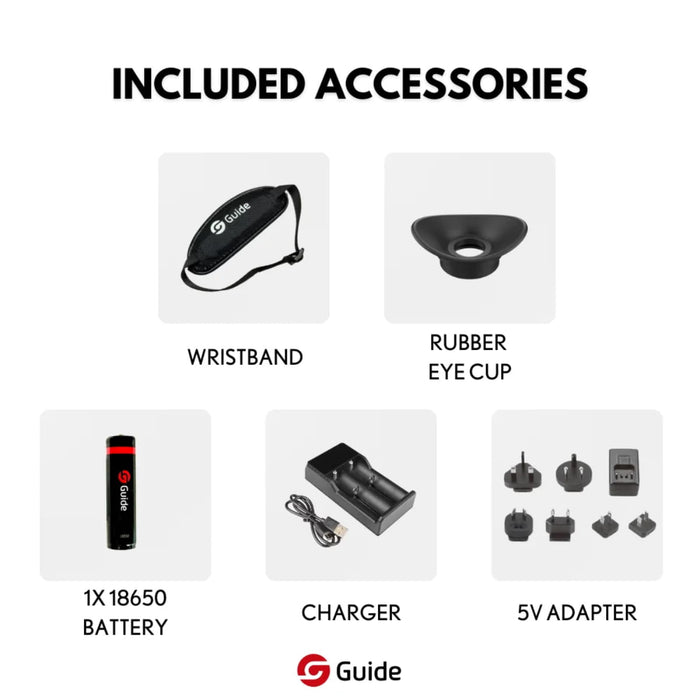

What's Included:
✓ Guide TD633 LRF 2x35mm Thermal Monocular
✓ Dust-Free Cloth
✓ Eye Mask
✓ Hand Strap
✓ 18650 Battery ×1
✓ Battery Charger
✓ 5V 2A Adapter (US or UK or Australia or Europe)
✓ USB-A to USB-C Cable
✓ Quick Start Guide
✓ 10-Year Warranty
Specifications:
|
Sensor |
Uncooled VOx Infrared Detector, 8 to 14μm |
|
Resolution |
640×512@12μm |
|
NETD |
20mK |
|
Frame rate |
50Hz |
|

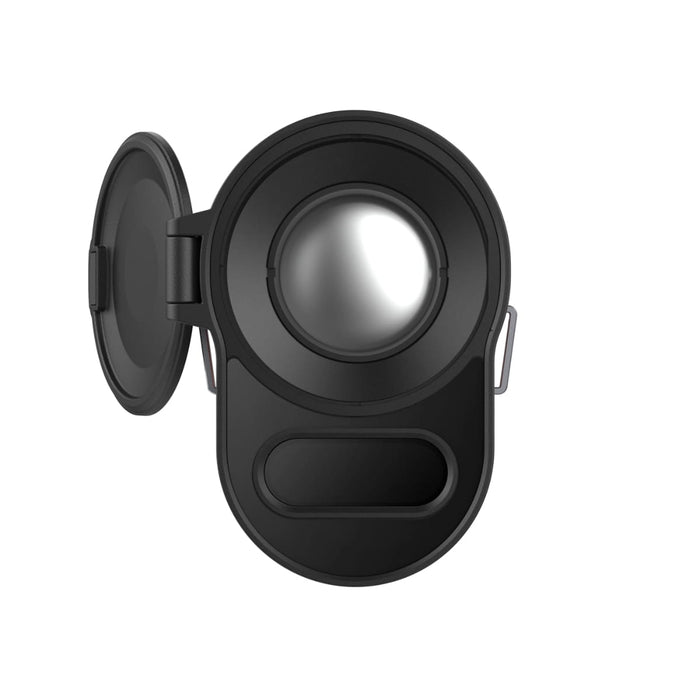

Objective lens |
35mm F1.0 |
|
Field of view |
12.5°×10° |
|
FOV m@100m |
22×17 |
|
Magnification |
2.0x~16x |
|
Detection range |
1800m/1950yd |
|
Focus |
Manual |
|
Digital Zoom |
8x |
|
Display type |
0.36'' AMOLED 1280×960 |
|
Color palettes |
White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia |
|
Eyepiece |
Eye relief: 20mm; Diopter: -6 to +6; Zoom: 13.8x |
|
Laser rangefinder |
1000m/1090yd |
|
WIFI |
2.4G, 5G |
|
Interface |
USB-C |
|
Others |
Microphone, Bluetooth |
|
Recording function |
Photo/Video (Audio recording included) |
|
Memory capacity |
32GB |
|
Battery type |
Single, Replaceable 18650 Battery |
|
Operating time |
10 hours |
|
Operating temp. |
-20°C to 50°C / -4°F to +122°F |
|
Encapsulation |
IP67 |
|
Weight (g/oz) |
376/13.26 |
|
Size (mm/in) |
159×54×74/6.26×2.13×2.91 |
|
Standard |
Device, Dust-Free Cloth, Hand Strap, Eye Mask, Battery Charger, 18650 Battery ×1, 5V 2A Adapter (US, UK, Australia, and Europe), USB-A to USB-C Cable, Quick Start Guide, Warranty Card |
|
Optional |
Bluetooth Rem |
