LW Scientific i4 Lumin Epi-Fluorescence Microscope

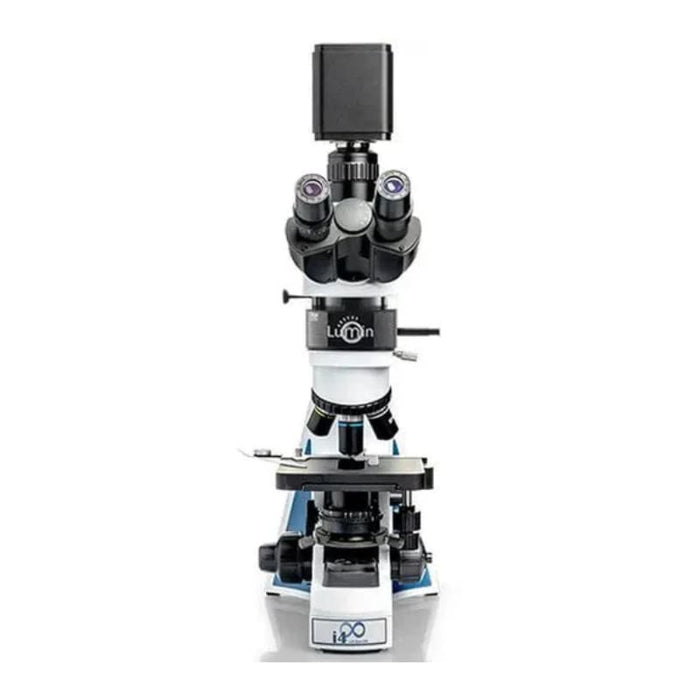

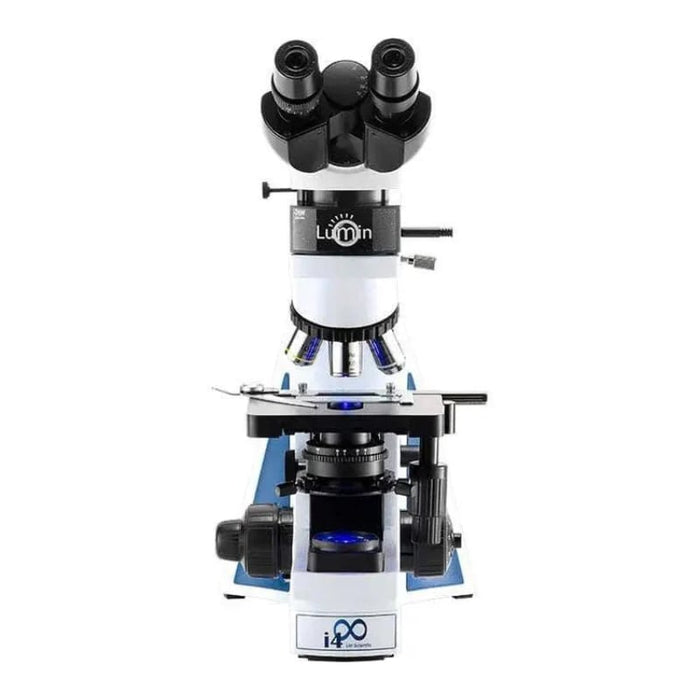

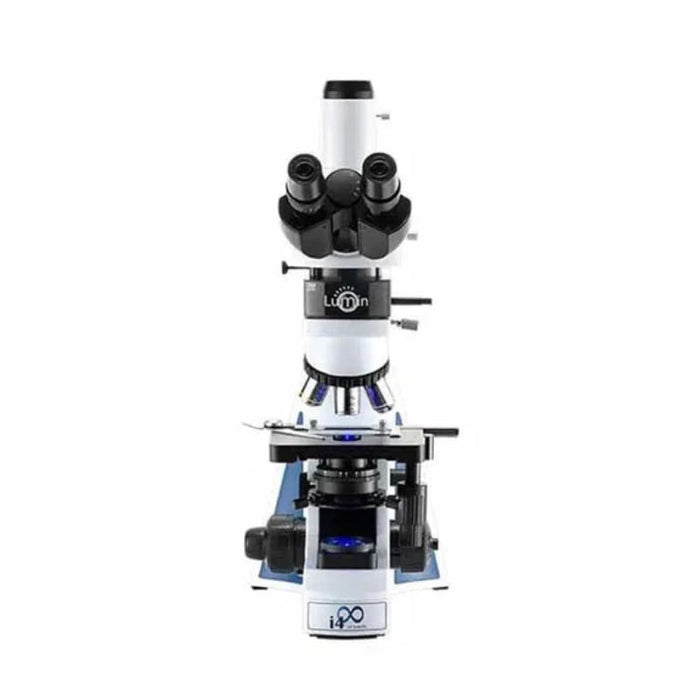

i4 Lumin Epi-Fluorescence Microscope by LW Scientific - Available in Binocular and Trinocular Model

Advanced Fluorescence Imaging for Research and Diagnostics

The i4 Lumin Epi-Fluorescence Microscope delivers high-sensitivity fluorescence imaging with exceptional clarity and precision. Designed for clinical, research, and diagnostic laboratories, this microscope is ideal for applications such as pathogen detection, cell biology, and microbiology research.

Featuring a powerful LED fluorescence system, the i4 Lumin offers brighter, more stable illumination compared to traditional mercury or halogen bulbs. Its Infinity Plan optics ensure sharp, high-contrast images, while the modular design allows for easy customization and expansion based on laboratory needs.

Features:

• LED Epi-Fluorescence Illumination – Provides bright, stable, and long-lasting fluorescence imaging.

• Infinity Plan Optics – Delivers sharp, high-resolution images for accurate analysis.

• Modular Expandability – Customizable with multiple fluorescence filter sets for various applications.

• Energy-Efficient & Mercury-Free – Reduces maintenance costs and eliminates hazardous waste.

• Durable & Cost-Effective – Designed for long-term use in clinical, veterinary, and research labs.

Why Choose the i4 Lumin Fluorescence Microscope?

• High-Sensitivity Fluorescence Imaging: Ideal for clinical diagnostics, microbiology, and molecular research.

• User-Friendly & Ergonomic Design: Easy to operate with minimal maintenance requirements.

• Reliable & Long-Lasting Performance: LED illumination ensures consistent fluorescence imaging without frequent bulb replacements.

Head:

• Binocular (Seidentopf), trinoc available

• Digital cameras and adapters available

• Diopter adjustment

• Inclined 30°, rotates 360°

• 10X/18 WF eyepieces

• (10X/20X Super WF HP eyepieces available)

• Interpupillary distance range 55-75mm

Nosepiece:

• Reverse quadruple nosepiece

• Multiple ball bearing mounted

Objectives:

• Infinity semi-plan or plan achromat objectives

• 4X, 10X, 40XR, 100XR (oil)

• 20X and 50X (oil) objective also available

• Anti-fungal, parfocal, parcentric, color-coded

Focus:

• Coarse adjustment: range of 30mm

• Fine adjustment: graduation of 2μm

• Tension control knob

Illumination:

• Brightfield:

  • Moveable Abbe condenser, NA 1.25

  • Iris diaphragm

  • Input: 12V 1A (use only supplied power adapter)

  • Power adapter: Input 100-240V, 50-60 Hz auto-switching

• Epifluorescence:

  • LED long-life light source

  • Excitation spectrum: FITC standard

  • Excitation: 485 nm

  • Emission: 510 nm

  • Other filter cubes available upon request

Stage:

• Mechanical stage (140mm x 130mm)

• Coaxial drive controls, metal rack & pinion

• Range of traverse: 78mm x 50mm

• Stage locking lever

• Slow-close hydraulic slide finger

What's Included:

✓ LW Scientific i4 Lumin Epi-Fluorescence Microscope

Specifications:

LW Scientific i4 Lumin Epi-Fluorescence Microscope Spec Sheet:

Download the LW Scientific i4 Lumin Epi-Fluorescence Microscope Spec Sheet
