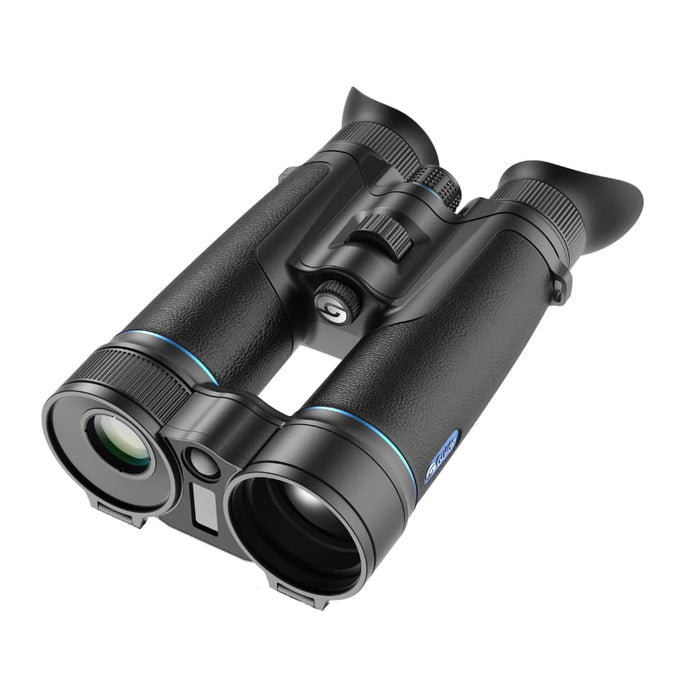

Guide DN70 MUO 2.0 Thermal & Digital Day/Night-Vision with LRF
Ships To: United States & Canada 🇺🇸 🇨🇦
✓ Fast Shipping
✓ Price Match Available
✓ Authorized Dealer
✓ Bulk Order Discounts Available
✓ Questions? Contact Us
✓ Call Us 1-800-860-3429
Ships In: 1-3 Business Days
Estimated Delivery Time: 3-7 Business Days
Shipping & Returns
We offer free U.S. shipping to the lower 48 States - on most orders over $150 USD. Some limitations apply.
Shipping fees will apply on most orders shipping across Canada, with some exceptions.
We offer a 30 Day Return Policy on most of the products that we carry.
For full details on our Shipping & Returns Policy, please click here.
Warranty
The vast majority of products that we sell, with a few exceptions, are covered under Warranty.
To view the Warranty details for each brand that we sell, including products that do not qualify for Warranty, please visit here.
DN70 MUO 2.0 (4.5x-18x)Thermal & (5.4x-21.6x) Digital Day/Night-Vision with Laser Rangefinder - Model # DN70M
The DN70 MUO 2.0 combines high-quality thermal imaging and ultra-low-light digital night vision in a versatile binocular platform designed for clear observation in challenging conditions. Its 25mm F1.0 thermal lens and 256×192 thermal high-quality sensor provide reliable thermal imaging with a detection range of up to 1,400 yards.
For digital night vision, the DN70 MUO 2.0 features a 70mm F1.8 lens and 3840×2160 ultra-low-light CMOS sensor, delivering detailed digital imagery even in low-light environments. Viewing is enhanced by an ultra-wide 0.49-inch AMOLED display with 1920×1080 resolution.
An integrated 1,630-yard laser rangefinder provides precise distance measurements, while the dual battery system combines one internal USB-C rechargeable battery with one external 18650 battery for flexible power options during extended use.
Features:
-
Thermal: 25mm F1.0, 256x192 Thermal High Quality Sensor
-
Digital: 70mm, F1.8, 3840x2160 Ultra-low light CMOS sensor
-
Ultra-wide display: 0.49'' AMOLED 1920×1080
-
1400yd Detection Range
-
1630yd Laser Rangefinder
-
Dual battery system: 1x internal (USB-C rechargeable) and 1x external (18650)
What's Included:
✓ Guide DN70 MUO 2.0 Thermal & Digital Day/Night-Vision with LRF
✓ Eye Mask
✓ Neck Strap
✓ Carry Bag
✓ 18650 Battery ×1
✓ Battery Charger
✓ 5V 2A Adapter
✓ USB-A to USB-C Cable
✓ Quick Start Guide
✓ 10-Year Warranty
Specifications:
|
Type |
Thermal: Uncooled VOx Infrared Detector, 8 to 14μm; Digital: CMOS |
|
Resolution |
Thermal: 256×192 @ 12μm (NETD 30mK); Digital: 3840×2160 @ 2μm |
|
Frame Rate |
50Hz |
|
Objective Lens |
Thermal: 25mm, F1.0; Digital: 70mm, F1.8 |
|
Field of View |
Thermal: 6.6°×4.0°; Digital: 5.9°×3.5° |
|
FOV m @ 100m |
Thermal: 12×7; Digital: 10×6 |
|
Magnification |
Thermal: 4.5x~18x; Digital: 5.4x~21.6x |
|
Detection Range |
Thermal: 1400yd; Digital: 1400yd |
|
Focus |
Manual |
|
Display Type |
0.49" AMOLED 1920×1080 |
|
Color Palettes |
IR: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia; Visible: Day, Night, Low-light |
|
Image Modes |
IR, Visible, Fusion 1, Fusion 2, Fusion 3 |
|
Eyepiece |
Eye Relief: 20mm; Diopter: -6 to +6; Interpupillary Distance Adjustment: 58~72mm; Zoom: 13.8x |
|
Laser Rangefinder |
1630yd |
|
WIFI |
2.4G, 5G |
|
Interface |
USB-C (Support Charging) |
|
Others |
Microphone, Compass, Gyroscope, Bluetooth |
|
Recording Function |
Photo/Video (Audio Recording Included) |
|
Memory Capacity |
256GB |
|
Battery Type |
Customized Battery (Built-in) and 18650 ×1 Battery (External) |
|
Operating Time |
5 Hours |
|
Operating Temp. |
-4°F to +122°F |
|
Encapsulation |
IP67 |
|
Weight (oz) |
32.24 |
|
Size (in) |
8.90×5.24×2.52 |
|
Standard |
Device, Eye Mask, Neck Strap, Carry Bag, 18650 Battery ×1, Battery Charger, 5V 2A Adapter, USB-A to USB-C Cable, Quick Start Guide, Warranty Card |
|
Optional |
Bluetooth Remote Control, 18650 Battery |
