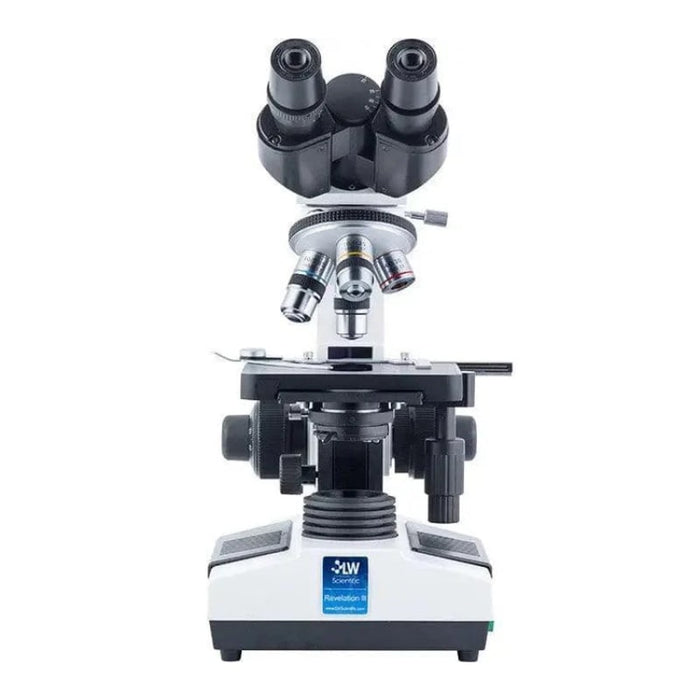

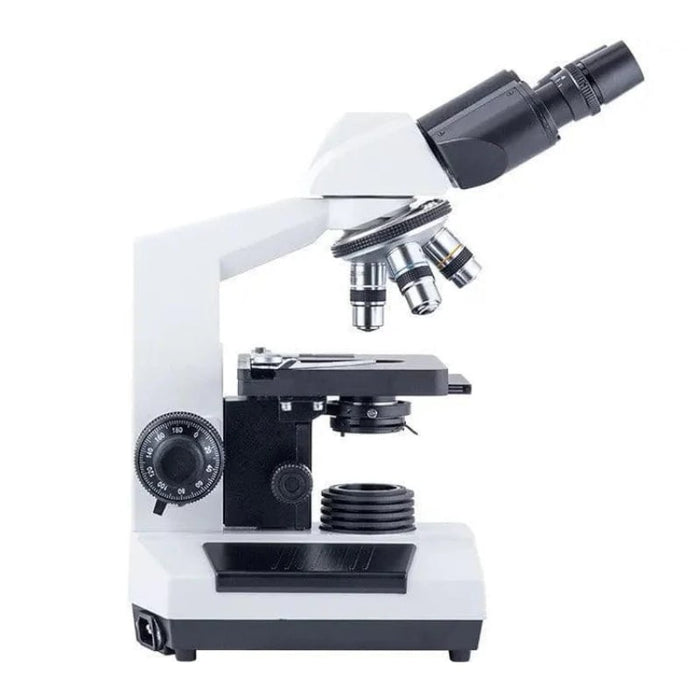

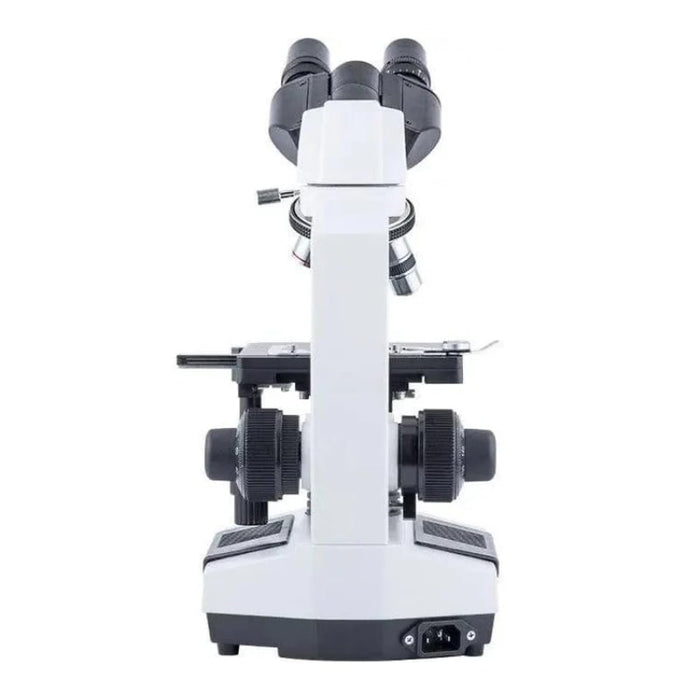

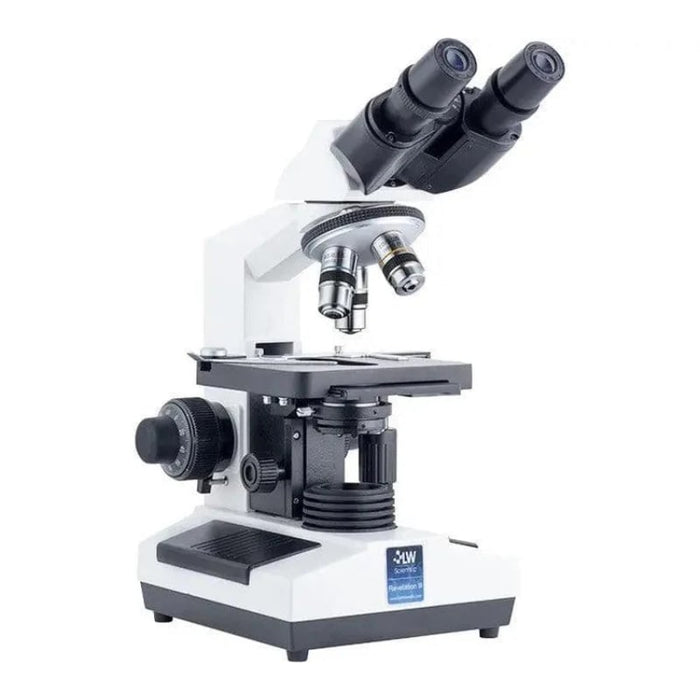

LW Scientific Revelation III Binocular Microscope - with 4 DIN Plan Objectives - Model # R3M-BN4A-DPL3
The Revelation III Binocular Microscope with 4 DIN Plan Objectives is a trusted choice for medical clinics, veterinary labs, research facilities, and educational institutions that require clear, high-contrast imaging and long-term durability.
Designed with Infinity Plan optics, this microscope delivers sharp, distortion-free images, making it ideal for pathology, cytology, microbiology, and general laboratory applications.
Built for efficiency and comfort, the LW Scientific Revelation III Binocular Microscope (Model # R3M-BN4A-DPL3) features an ergonomic viewing head, reducing strain during extended use. The energy-efficient LED illumination provides consistent brightness with a long lifespan, minimizing maintenance needs while enhancing specimen visibility.
Ideal Applications:
- Medical Clinics
- Veterinary Labs
- Research Facilities
- Educational Institutions
Features:
-
Infinity Plan Optics – Provides superior clarity and accurate specimen analysis.
-
Energy-Efficient LED Illumination – Offers bright, cool lighting for long-lasting use.
-
Ergonomic Binocular Viewing Head – Designed for comfort during extended microscope sessions.
-
Durable & Reliable Construction – Built for daily use in clinical, veterinary, and research settings.
-
Modular & Upgradeable – Compatible with additional accessories for enhanced functionality.
Why Choose the Revelation Series Microscope?
-
Precision Optical Performance: Ensures detailed specimen analysis with minimal distortion.
-
User-Friendly & Comfortable: Reduces eye strain with an ergonomic design.
-
Long-Term Investment: High-quality materials and LED illumination extend the lifespan of the microscope.
Head:
-
Binocular (Seidentopf), inclined 30°, rotates 360°
-
Diopter adjustment
-
10X/18 wide field eyepieces (10X/20HP optional)
-
Interpupillary distance: 48–75mm
Nosepiece:
-
Quadruple forward-facing nosepiece
-
Multiple ball bearing mounted
Objectives:
-
DIN Infinity Plan optics
-
4X, 10X, 40X, 100XR (oil)
-
30-year anti-fungal coating
-
Parfocal, parcentric, color-coded
Stage:
-
Mechanical stage (140mm x 130mm)
-
Coaxial drive controls
-
Traverse range: 78mm x 50mm
-
Stage locking lever
-
Slow-close hydraulic slide finger
Focus:
-
Coarse adjustment: 30mm range
-
Fine adjustment: 2μm graduation
-
Tension control knob
Illumination:
-
Moveable Abbe condenser, NA 1.25, rack & pinion
-
Iris diaphragm
-
100–240V AC / 50–60Hz auto-switching input
-
Variable LED light source (3W)
What's Included:
✓ LW Scientific Revelation III Binocular Microscope - R3M-BN4A-DPL3
✓ 4 Objectives - 4X, 10X, 40XR1 100XR (Oil)
✓ Blue & Green Filters
✓ Dust Cover
✓ Spare Fuse
✓ Immersion Oil
✓ Instructional Manual
Specifications:
| Height: | 15" (380mm) |
| Length: | 9" (230mm) |
| Width: | 7" (178mm) |
| Weight: | 14 lbs. (6.4kg) |
Product Manual & Spec Sheet:
Download the LW Scientific Revelation III Binocular Microscope R3M-BN4A-DPL3 - Product Manual & Spec Sheet
