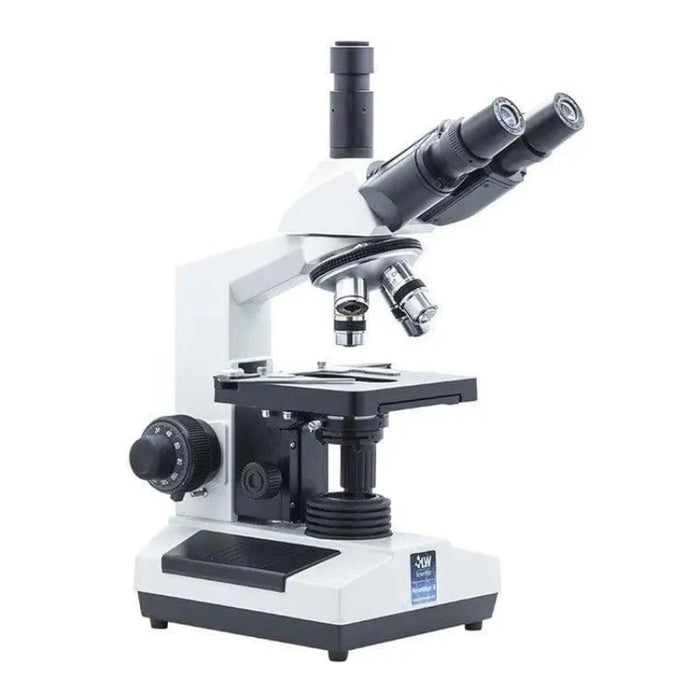

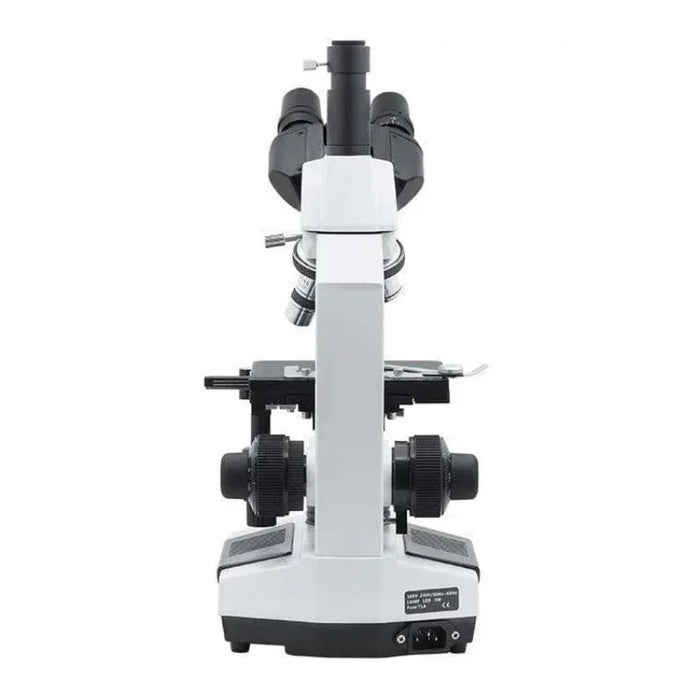

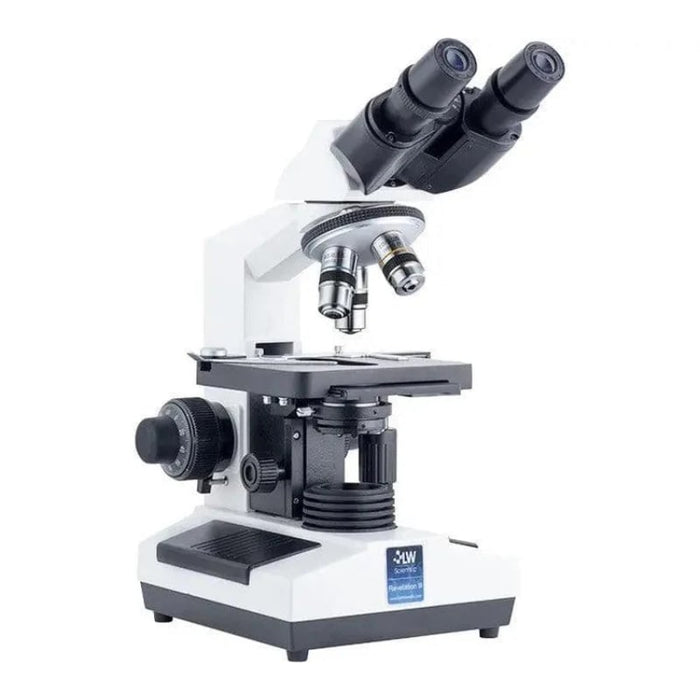

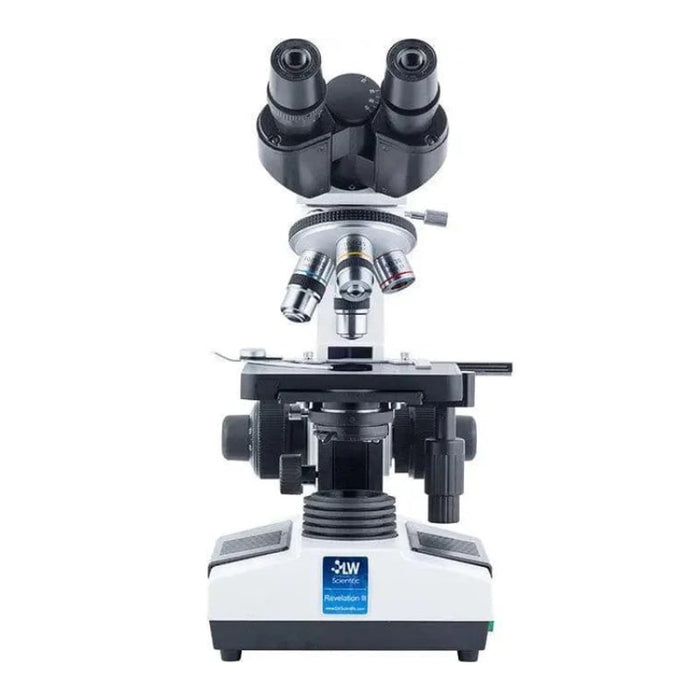

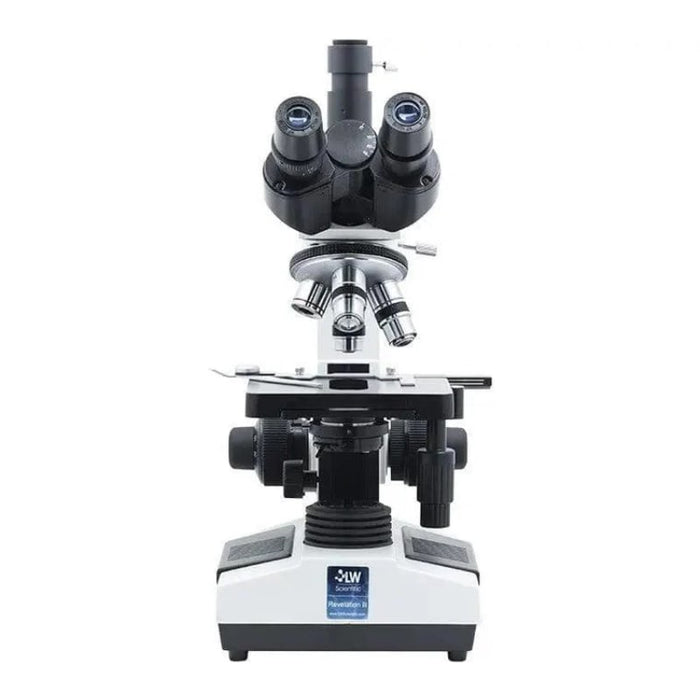

Revelation III DIN Microscopes with 4 Objectives Available by LW Scientific
High-Performance Imaging for Clinical, Laboratory, and Educational Use
The Revelation Series Microscope is a trusted choice for medical clinics, veterinary labs, research facilities, and educational institutions that require clear, high-contrast imaging and long-term durability.
Designed with Infinity Plan and Semi-Plan optics, this microscope delivers sharp, distortion-free images, making it ideal for pathology, cytology, microbiology, and general laboratory applications.
Built for efficiency and comfort, the Revelation Series features an ergonomic viewing head, reducing strain during extended use. The energy-efficient LED illumination provides consistent brightness with a long lifespan, minimizing maintenance needs while enhancing specimen visibility.
Features:
Head:
-

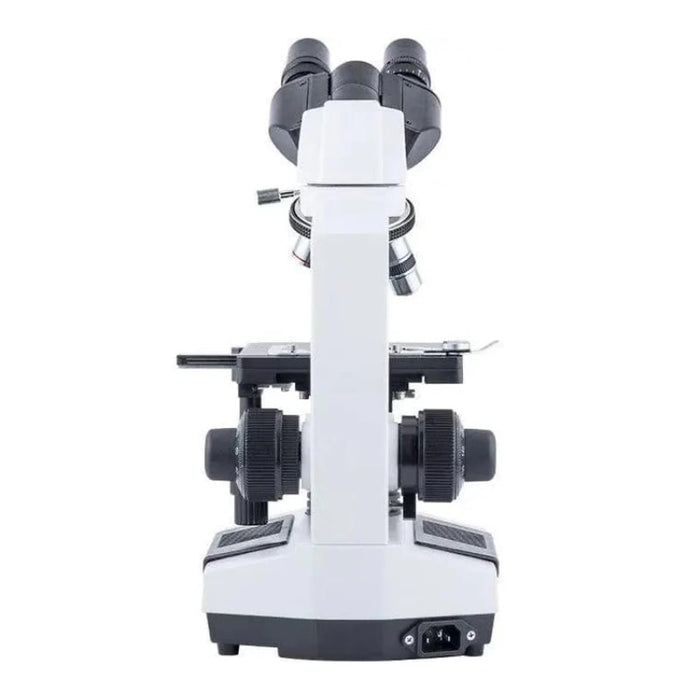

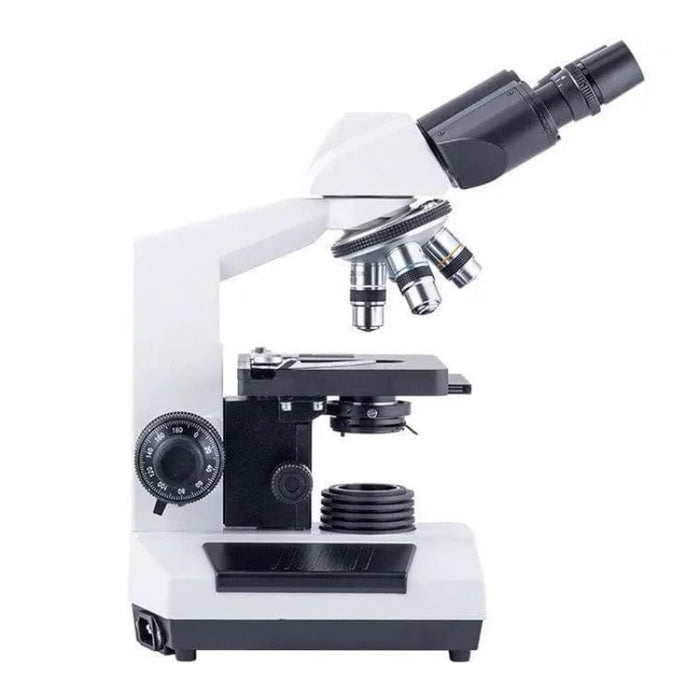

Binocular (Seidentopf), inclined 30°, rotates 360°
-
Diopter adjustment
-
10X/18 wide field eyepieces (10X/20HP available)
-

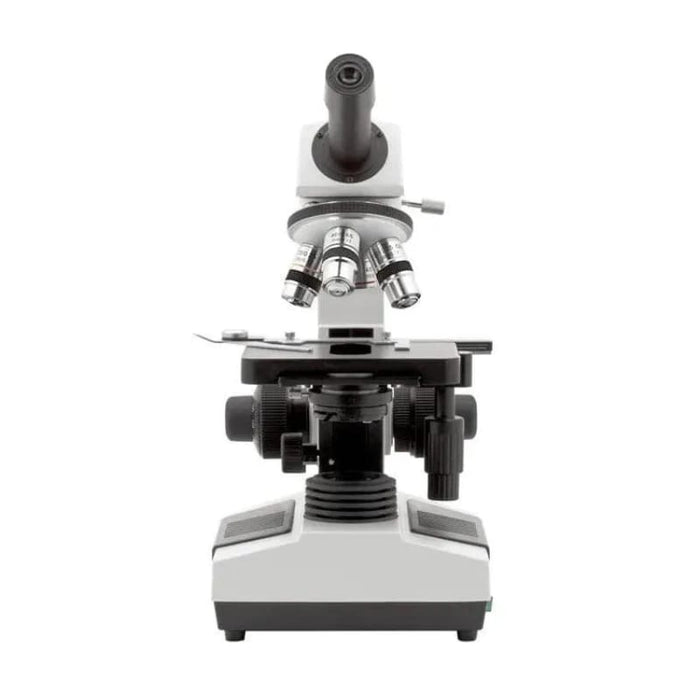

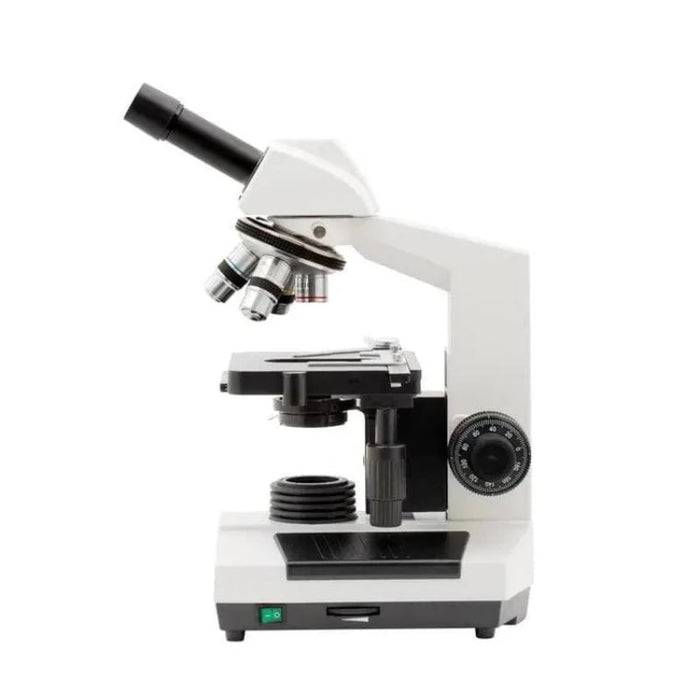

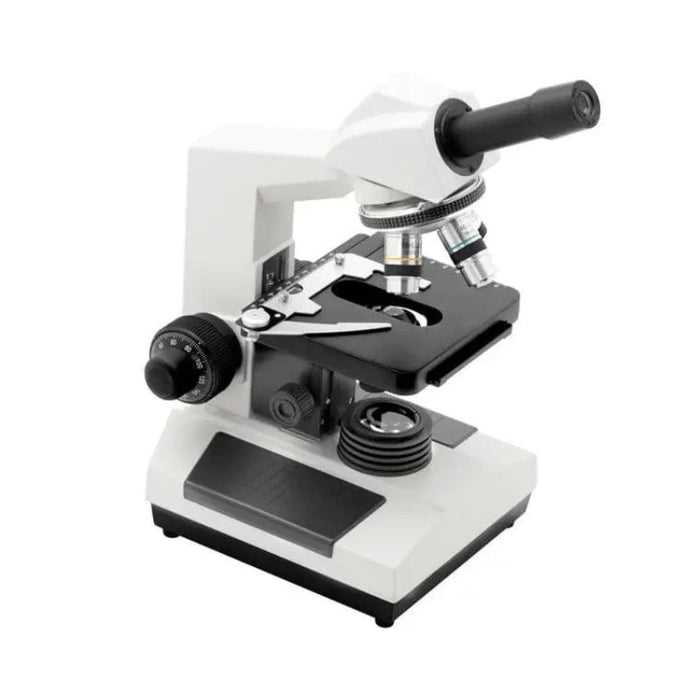

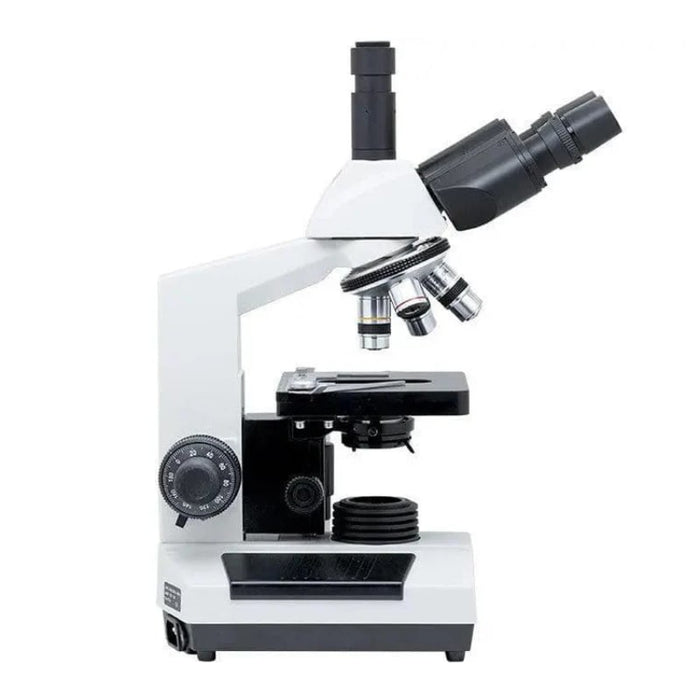

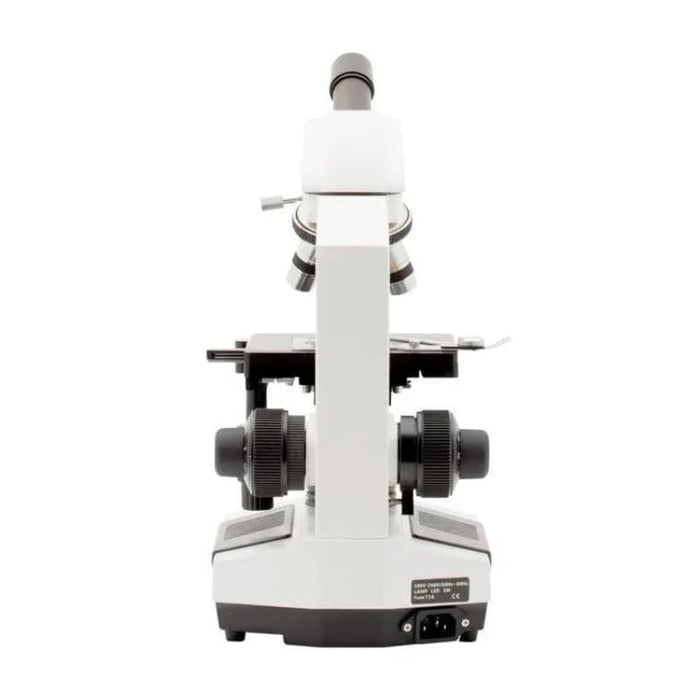

Monocular, trinocular, dual binocular, and 45° sliding heads available
-
Interpupillary distance:
-
Binocular head: 48–75mm
-
Trinocular head: 55–75mm
-
Nosepiece:
-
Quadruple forward-facing nosepiece
-
Multiple ball bearing mounted
Objectives:
-
DIN Achromatic or DIN Plan
-
30-year anti-fungal coating
-
4X, 10X, 40X, 100XR (oil)
-
Parfocal, parcentric, color-coded
Stage:
-
Mechanical stage (140mm x 130mm)
-
Coaxial drive controls
-
Traverse range: 78mm x 50mm
-
Stage locking lever
-
Slow-close hydraulic slide finger
Focus:
-
Coarse adjustment: 30mm range
-
Fine adjustment: 2μm graduation
-
Tension control knob
Illumination:
-
Moveable Abbe condenser, NA 1.25, rack & pinion
-
Iris diaphragm
-
100–240V AC / 50–60Hz auto-switching input
-
Variable LED light source (3W bulb)
What's Included:
✓ LW Scientific Revelation III DIN - 4 Objective Microscope
✓ Instructional Manual
Specifications:
| SKU Number: | R3M-BN4A-DAL3, R3M-TN4A-DAL3, R3M-BN4A-DPL3, R3M-TN4A-DPL3, R3M-BN4A-DALP, R3M-TN4A-DALP, R3M-MN4A-DAL3 |
| Height: | 15" (380mm) |
| Length: | 9" (230mm) |
| Width: | 7" (178mm) |
| Weight: | 14 lbs. (6.4kg) |
Product Manual & Spec Sheet:
Download the LW Scientific Revelation III DIN - 4 Objective Microscope Product Manual & Spec Sheet
