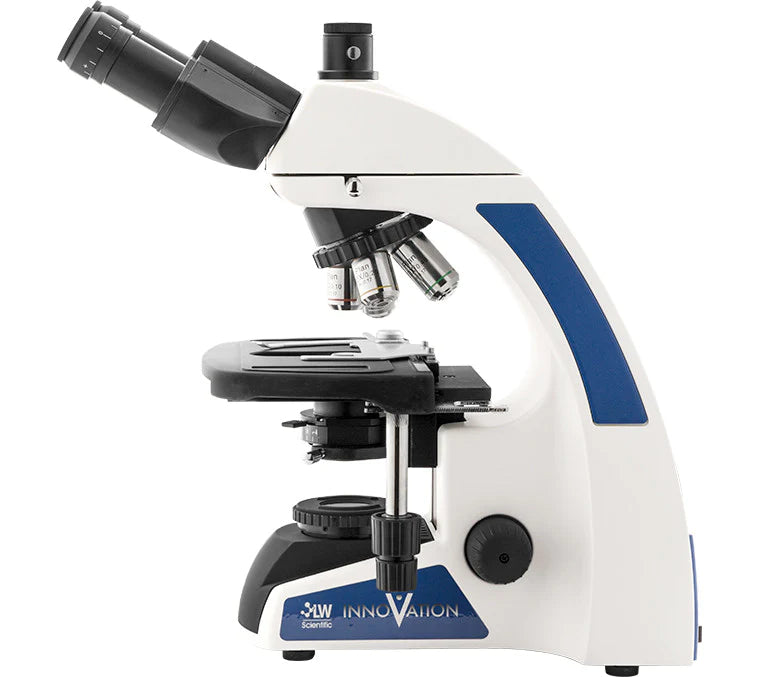

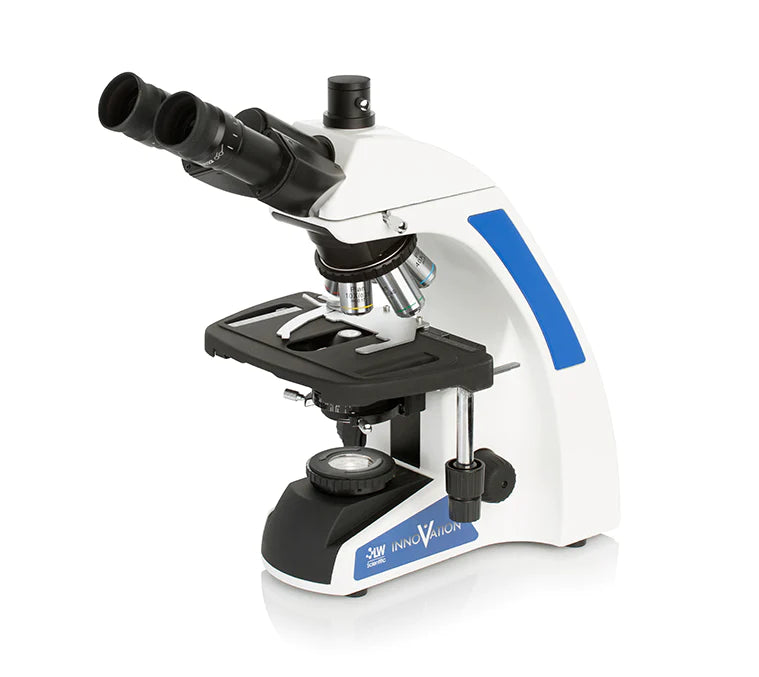

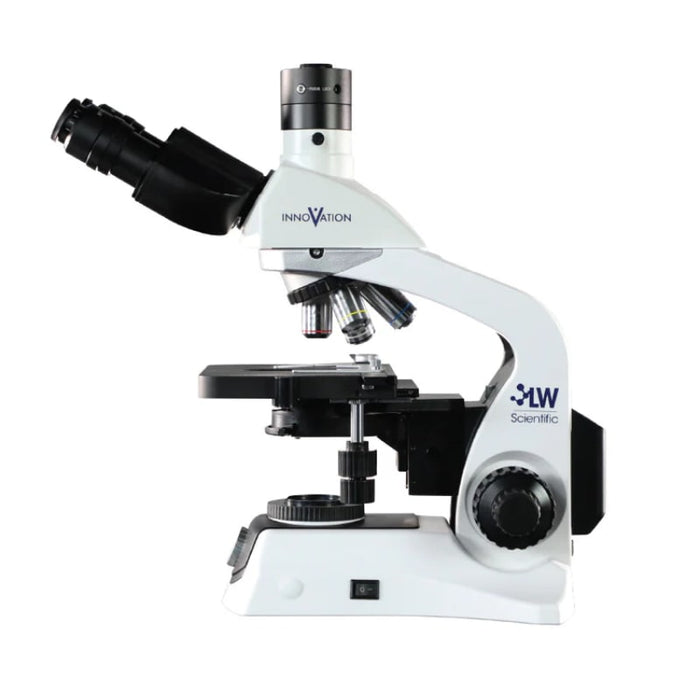

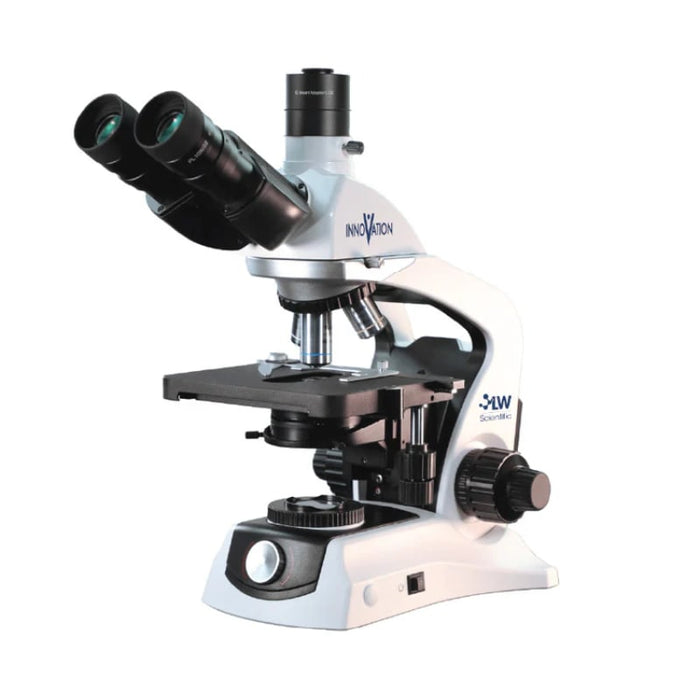

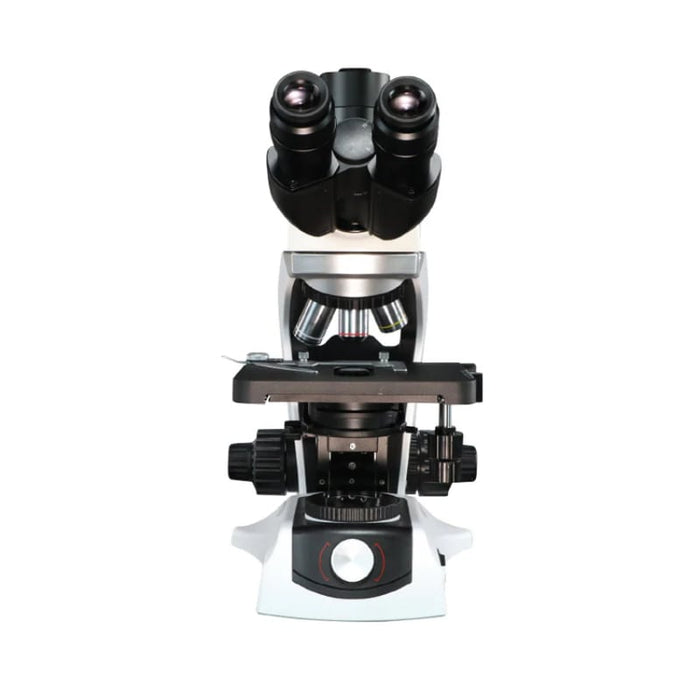

LW Scientific Innovation Infinity Plan Biological Microscope

LW Scientific Innovation Biological Microscope - with 4 to 5 Objectives Available

Precision and Clarity for Biological and Clinical Applications

The Innovation Biological Microscope is engineered for high-performance imaging, making it an essential tool for clinical diagnostics, research, and educational laboratories.

Built with Infinity Plan optics, this microscope provides sharp, high-contrast images, allowing for detailed analysis of biological specimens.

Designed for efficiency and comfort, the ergonomic tilting head reduces strain during long observation periods, while the cool LED illumination ensures bright, consistent lighting without the heat of traditional halogen bulbs. The microscope’s modular design allows for easy customization to meet the needs of various laboratory applications.

Features:

• Infinity Plan Optics – Delivers crisp, distortion-free images for precise analysis.

• Ergonomic Tilting Head – Provides adjustable viewing angles for user comfort.

• Energy-Efficient LED Illumination – Ensures consistent, bright lighting with long lifespan.

• Modular & Expandable Design – Adaptable for various clinical and research applications.

• Durable Construction – Built for long-term use in medical, veterinary, and educational labs.

Head:

• Binocular (Seidentopf), Trinocular Available

• Digital Cameras Available

• Diopter Adjustment ±5 (Built Into Each Eyepiece)

• Inclined 30°, Rotates 360°

• 10X/22 Super WF HP Eyepieces (15X/16 Eyepieces Available)

• 30mm Eyetube

• Interpupillary Distance Range: 50–75mm

Nosepiece:

• Reverse Quadruple / Quintuple Nosepiece

• Multiple Ball Bearing Mounted

Objectives:

• Infinity High Contrast Plan Objectives

• Choose From 4- Or 5-Hole Nosepiece

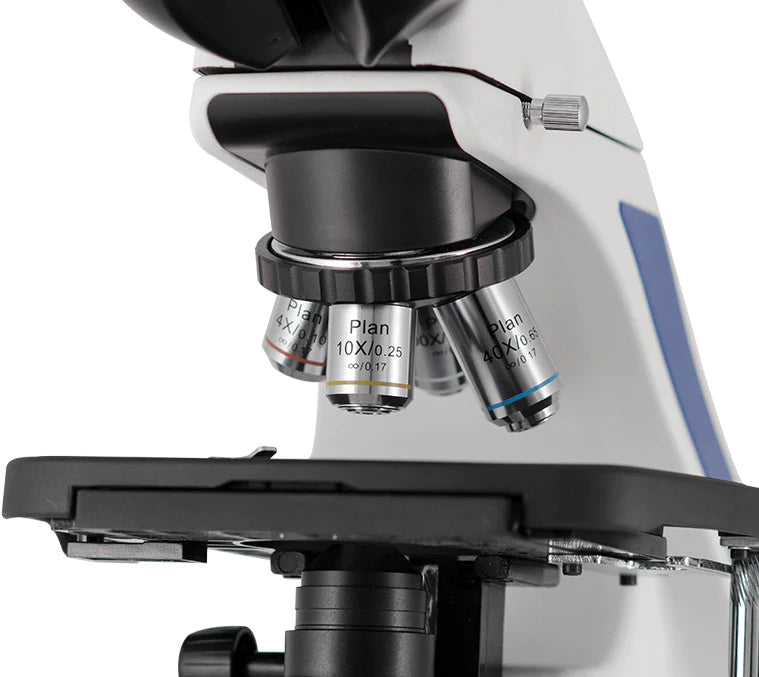

  • 4X, 10X, 40XR, 100XR (Oil) With 4-Hole Nosepiece

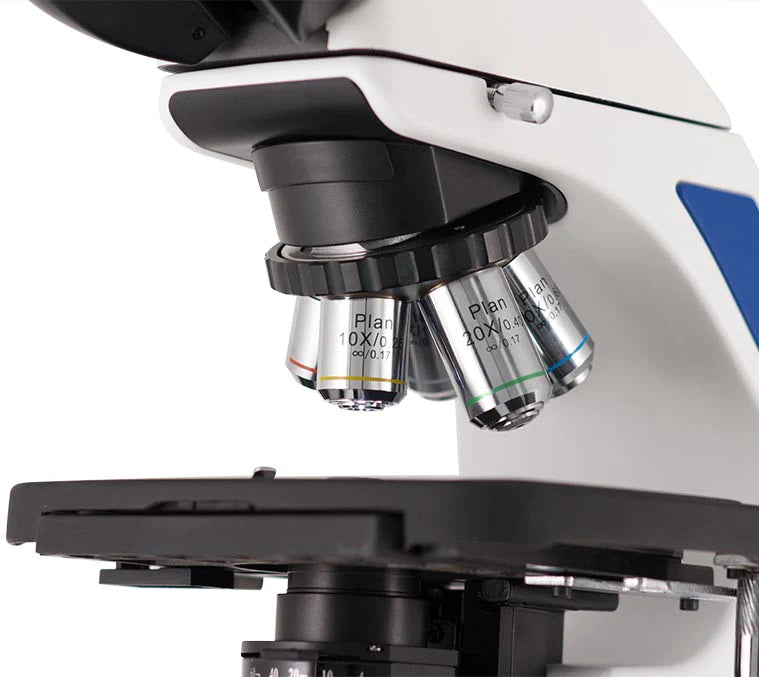

  • 4X, 10X, 20X, 40XR, 100XR (Oil) With 5-Hole Nosepiece

• 50X (Oil) And 60X Dry Objectives Also Available

• Anti-Fungal, Parfocal, Parcentric, Color-Coded

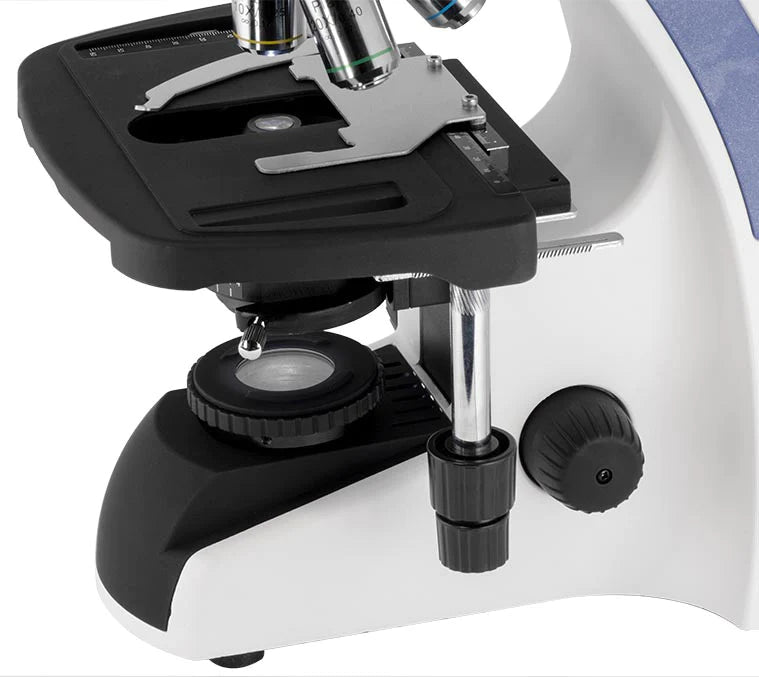

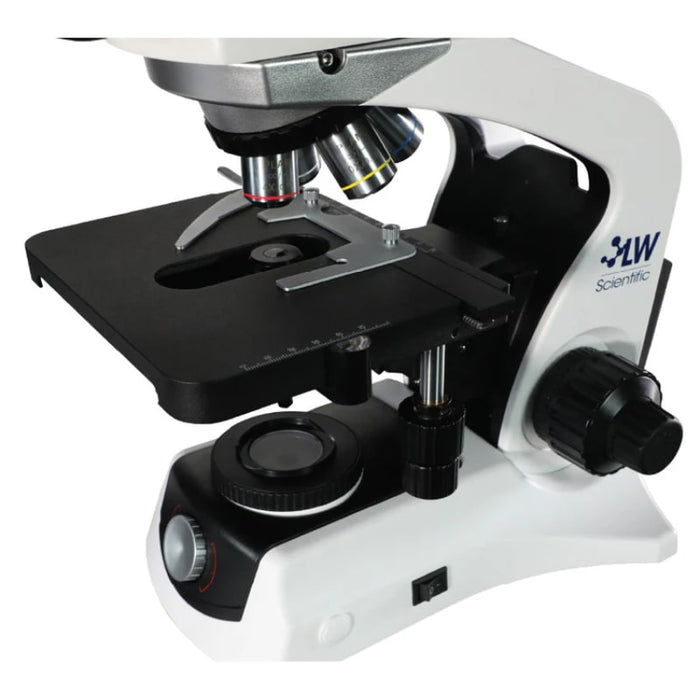

Stage:

• Double Layer Mechanical Stage (216mm X 150mm)

• Graphite-Coated Surface

• Coaxial Drive Controls, Rackless

• Range Of Traverse: 75mm X 55mm

• Slow-Close Hydraulic Slide Finger

Focus:

• Coarse Adjustment: Range Of 18mm

• Fine Adjustment: Graduation Of 0.001mm

• Tension Control Knob

Illumination:

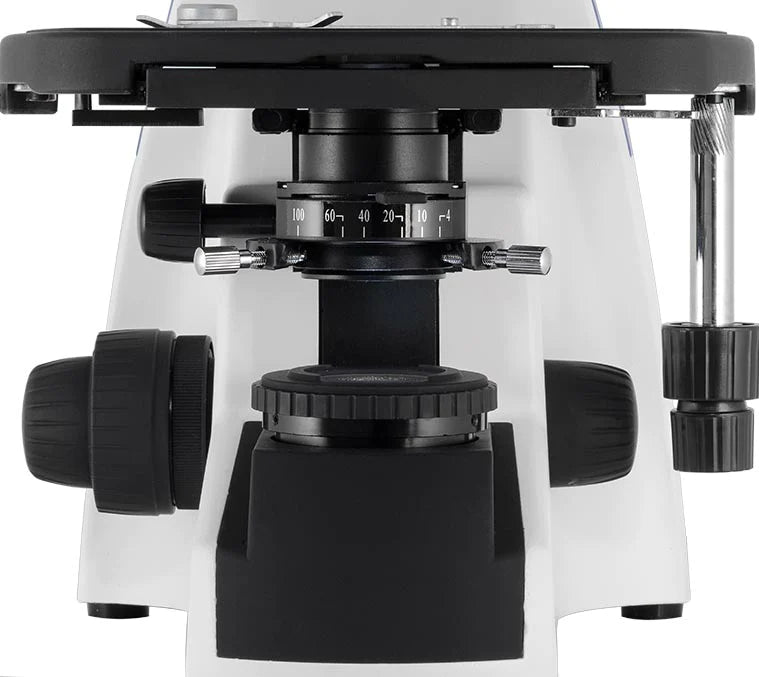

• Movable Abbe Condenser, NA 1.25

• Iris Diaphragm

• LED: 50,000 Hours Of Light, Consistent And Even Brightness

• Variable Light Adjustment

• Simple Kohler Illumination

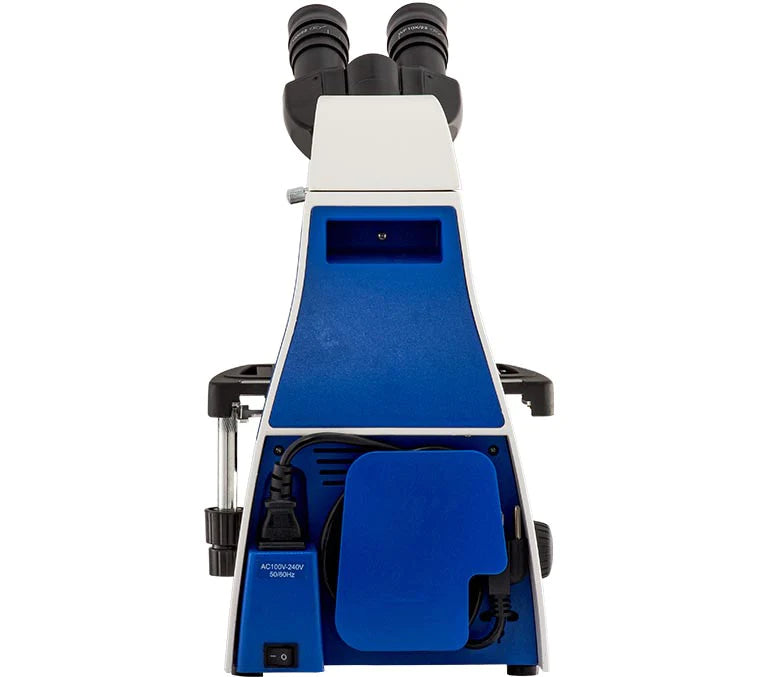

• 90–240V / 50–60Hz Automatic-Switching Power Input

Options:

• Phase Contrast

• Darkfield Condenser (Dry)

• Simple Polarizer

• WF 16X/15mm Eyepieces

Why Choose the Innovation Biological Microscope?

• Superior Optical Performance: High-resolution imaging for clear and accurate specimen observation.

• User-Friendly & Ergonomic Design: Designed for extended use without discomfort.

• Long-Lasting & Cost-Effective: LED lighting and modular upgrades make it a smart investment for any lab.

What's Included:

✓ LW Scientific Innovation Infinity Plan Biological Microscope

✓ Hard Carry Case

✓ Instructional Manual

Specifications:

Product Manual & Spec Sheet:

Download the LW Scientific Innovation Infinity Plan Biological Microscope Product Manual & Spec Sheet
