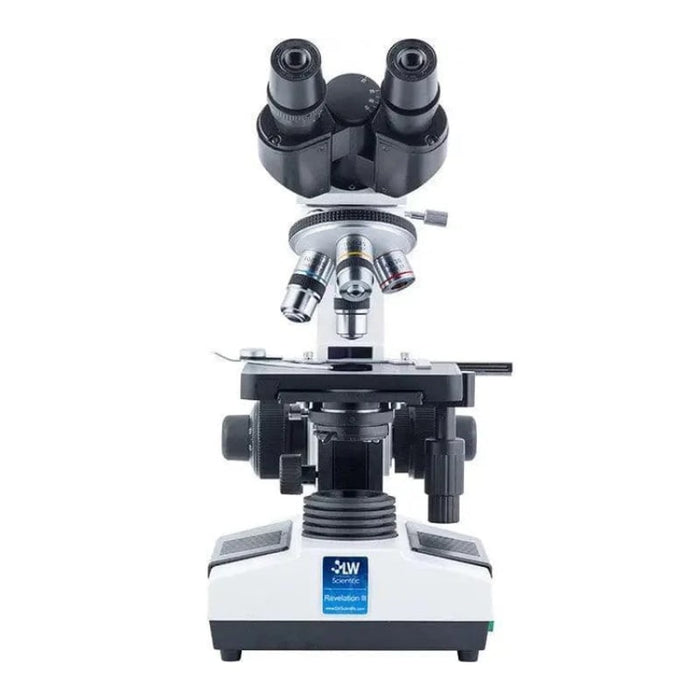

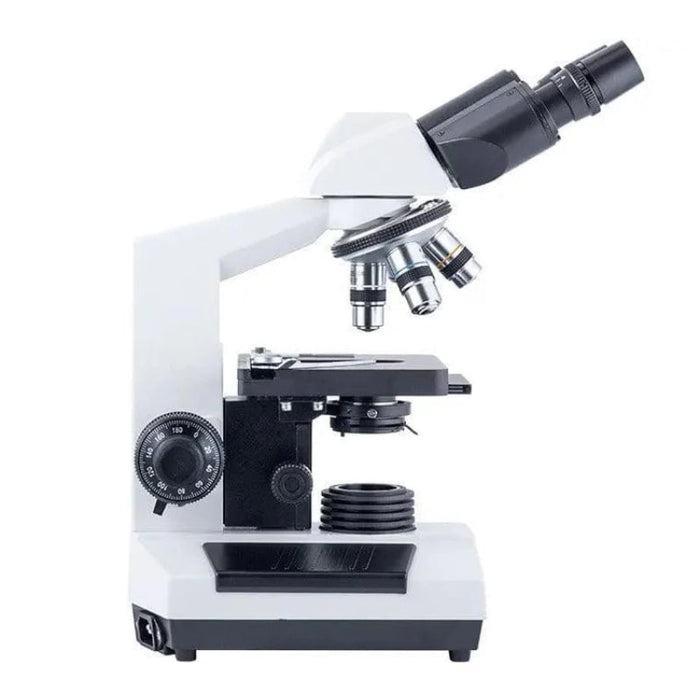

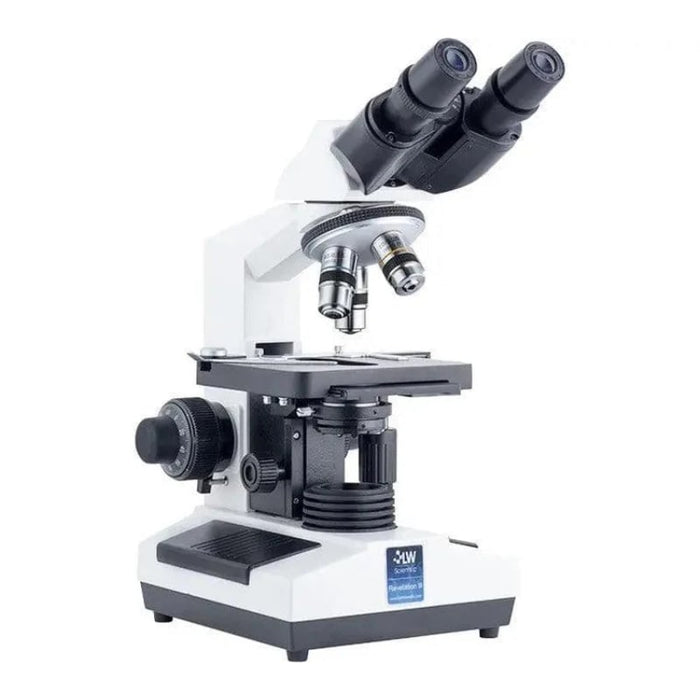

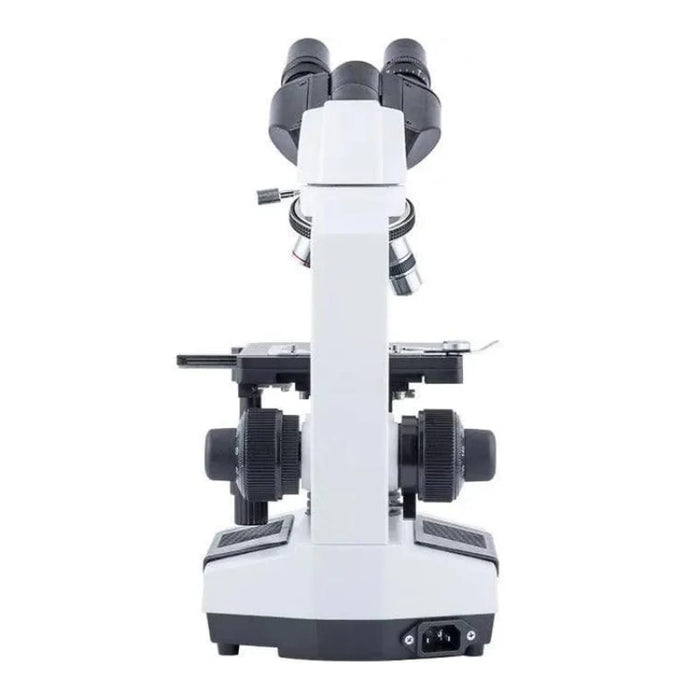

LW Scientific Revelation III Binocular Microscope with 4 DIN Achromatic Objectives
Ships To: United States & Canada 🇺🇸 🇨🇦
✓ Fast Shipping
✓ Price Match Available
✓ Authorized Dealer
✓ Bulk Order Discounts Available
✓ Questions? Contact Us
✓ Call Us 1-800-860-3429
Ships In: 1-3 Business Days
Estimated Delivery Time: 3-7 Business Days
Shipping & Returns
We offer free U.S. shipping to the lower 48 States - on most orders over $150 USD. Some limitations apply.
Shipping fees will apply on most orders shipping across Canada, with some exceptions.
We offer a 30 Day Return Policy on most of the products that we carry.
For full details on our Shipping & Returns Policy, please click here.
Warranty
The vast majority of products that we sell, with a few exceptions, are covered under Warranty.
To view the Warranty details for each brand that we sell, including products that do not qualify for Warranty, please visit here.
LW Scientific Revelation III Binocular Microscope with 4 DIN Achromatic Objectives - Model # R3M-BN4A-DAL3
The Revelation III Microscope is a trusted choice for medical clinics, veterinary labs, research facilities, and educational institutions that require clear, high-contrast imaging and long-term durability.
Designed with Infinity Plan optics, this microscope delivers sharp, distortion-free images, making it ideal for pathology, cytology, microbiology, and general laboratory applications.
Built for efficiency and comfort, the R3M-BN4A-DAL3 features an ergonomic viewing head, reducing strain during extended use. The energy-efficient LED illumination provides consistent brightness with a long lifespan, minimizing maintenance needs while enhancing specimen visibility.
Features:
-
Infinity Plan Optics – Superior clarity and distortion-free imaging.
-
Energy-Efficient LED Illumination – Bright, cool lighting with long lifespan.
-
Ergonomic Binocular Viewing Head – Reduces eye and neck strain.
-
Durable & Reliable Construction – Built for frequent use in labs and clinics.
-
Modular & Upgradeable – Compatible with additional accessories for enhanced functionality.
Why Choose the Revelation Series Microscope?
-
Precision Optical Performance: Detailed specimen analysis with minimal distortion.
-
User-Friendly & Comfortable: Ergonomic binocular design for extended sessions.
-
Long-Term Investment: High-quality materials and LED illumination maximize lifespan.
Head:
-
Binocular (Seidentopf), inclined 30°, rotates 360°
-
Diopter adjustment
-
10X/18 wide field eyepieces (10X/20HP optional)
-
Interpupillary distance: 48–75mm
Nosepiece:
-
Quadruple forward-facing nosepiece
-
Multiple ball bearing mounted
Objectives:
-
DIN Infinity Plan
-
4X, 10X, 40X, 100XR (oil)
-
30-year anti-fungal coating
-
Parfocal, parcentric, color-coded
Stage:
-
Mechanical stage (140mm x 130mm)
-
Coaxial drive controls
-
Traverse range: 78mm x 50mm
-
Stage locking lever
-
Slow-close hydraulic slide finger
Focus:
-
Coarse adjustment: 30mm range
-
Fine adjustment: 2μm graduation
-
Tension control knob
Illumination:
-
Moveable Abbe condenser, NA 1.25, rack & pinion
-
Iris diaphragm
-
100–240V AC / 50–60Hz auto-switching input
-
Variable LED light source (3W)
What's Included:
✓ LW Scientific Revelation III Binocular Microscope - R3M-BN4A-DAL3
✓ 4 Objectives - 4X, 10X, 40XR1 100XR (Oil)
✓ Blue & Green Filters
✓ Dust Cover
✓ Spare Fuse
✓ Immersion Oil
✓ Instructional Manual
Specifications:
| Height: | 15" (380mm) |
| Length: | 9" (230mm) |
| Width: | 7" (178mm) |
| Weight: | 14 lbs. (6.4kg) |
Product Manual & Spec Sheet:
Download the LW Scientific Revelation III Binocular Microscope R3M-BN4A-DAL3 - Product Manual & Spec Sheet
